| Selling Price (USD) | Gasoline Engine Options | Diesel Engine Options |
|---|---|---|
| D500 | ||
|
$1,788 Briggs & Stratton 200 · 6.5HP |
RATO 420 Engine:
- $143
(Standard Configuration)
|
KOOP 173 Engine: $0 |
| D500F(Lift) | ||
|
$2,074 Briggs & Stratton 200 · 6.5HP |
RATO 420 Engine: - $143 | KOOP 173 Engine: $0 |
| D1000F(Lift) | ||
|

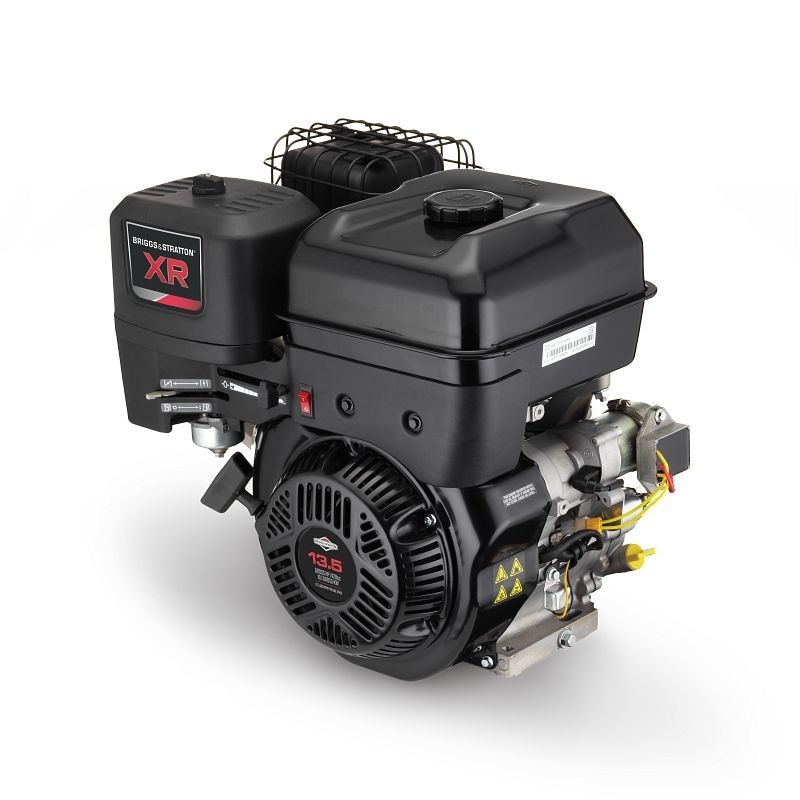

$2,932 Briggs & Stratton XR · 13.5HP |
RATO 420 Engine:
- $143
HONDA GX390 EPA:
+ $286
|
KOOP Euro V 192: $0
Changchai 192 (China II): $0
|
| D1200(Rotating) | ||
|
$2,574 Briggs & Stratton XR · 13.5HP |
RATO 420 Engine:
- $143
HONDA GX390:
+ $286
|
KOOP Euro V 192: $0
Changchai 192 (China II): $0
|
| Note: ❌ Diesel engines are NOT allowed for this type of equipment in the USA, Australia, and Canada due to very strict emission regulations. | ||

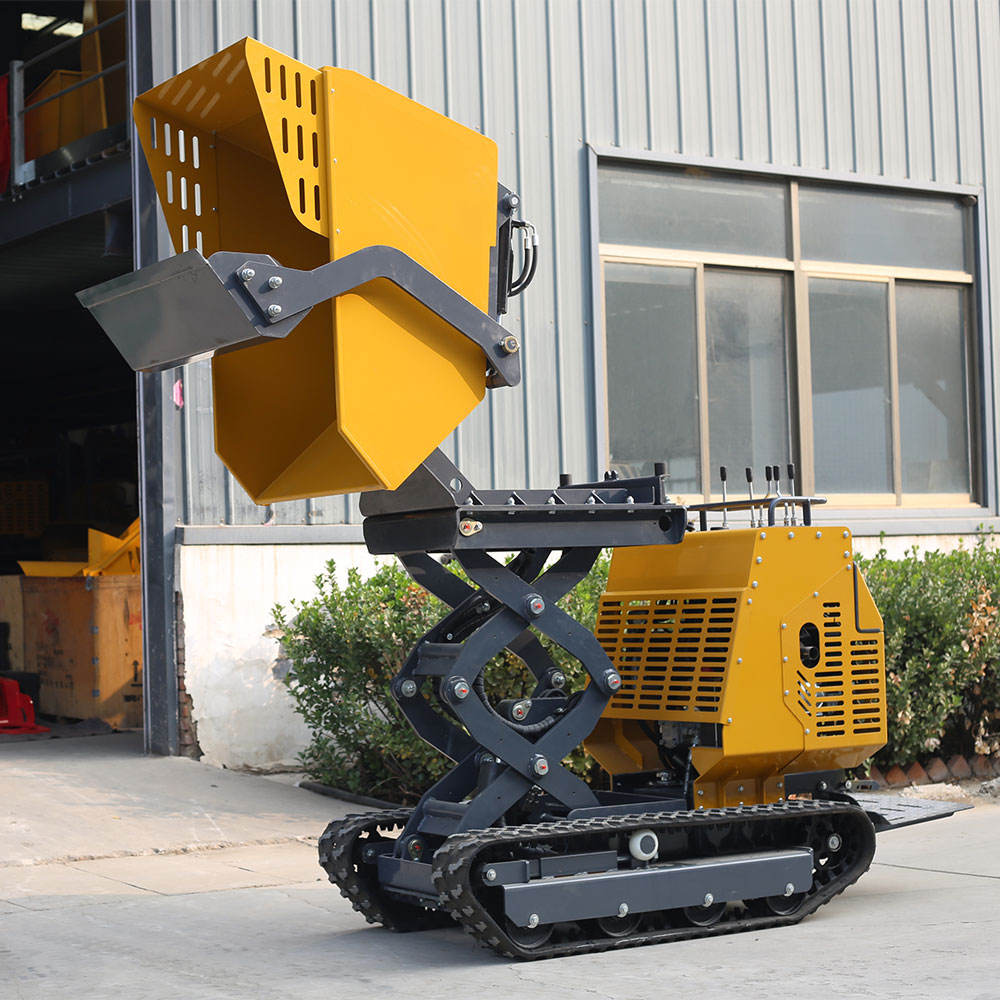

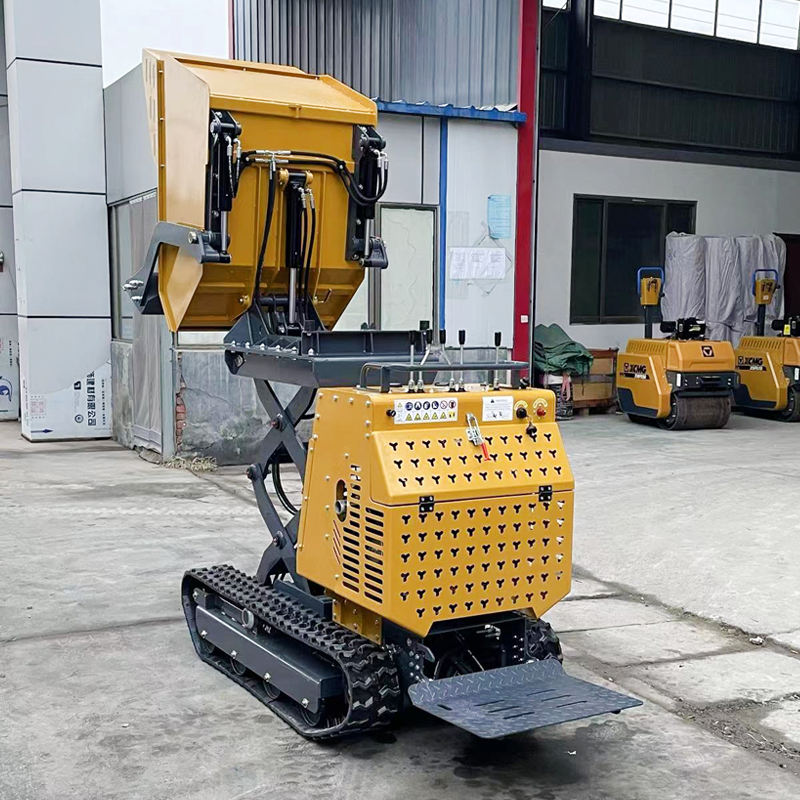

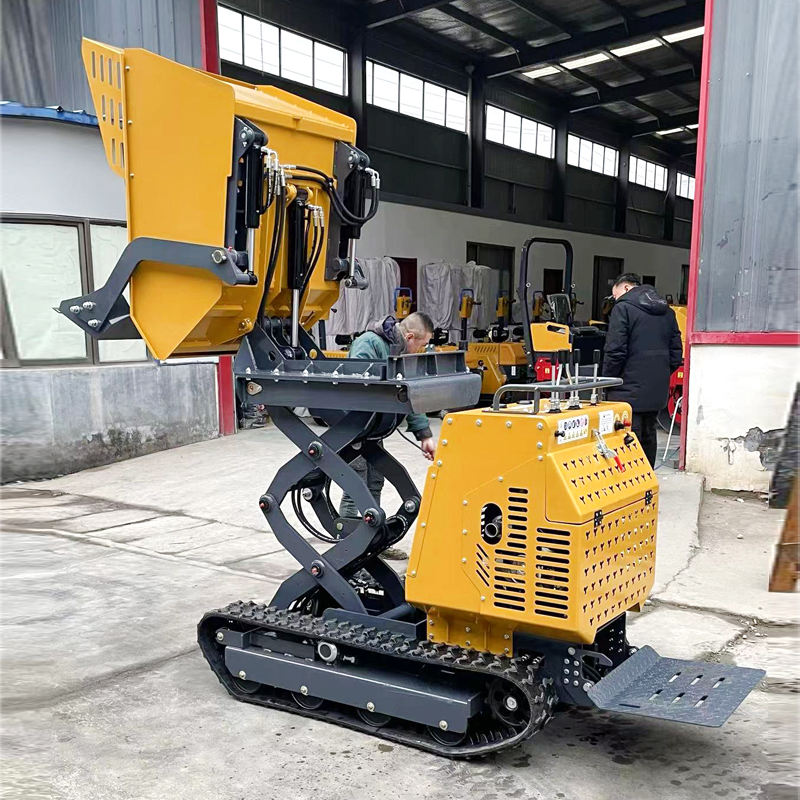

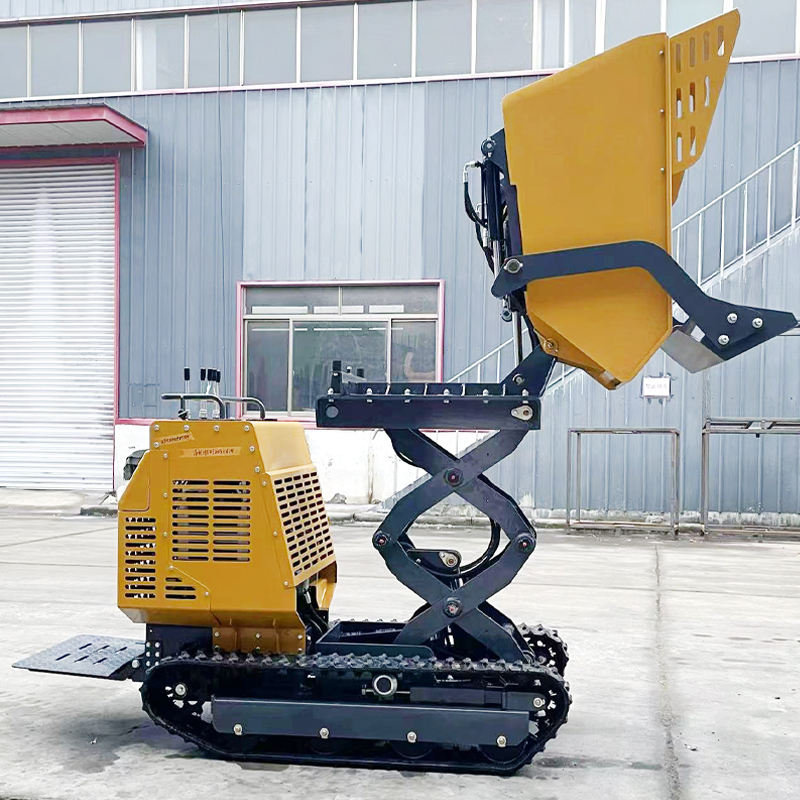

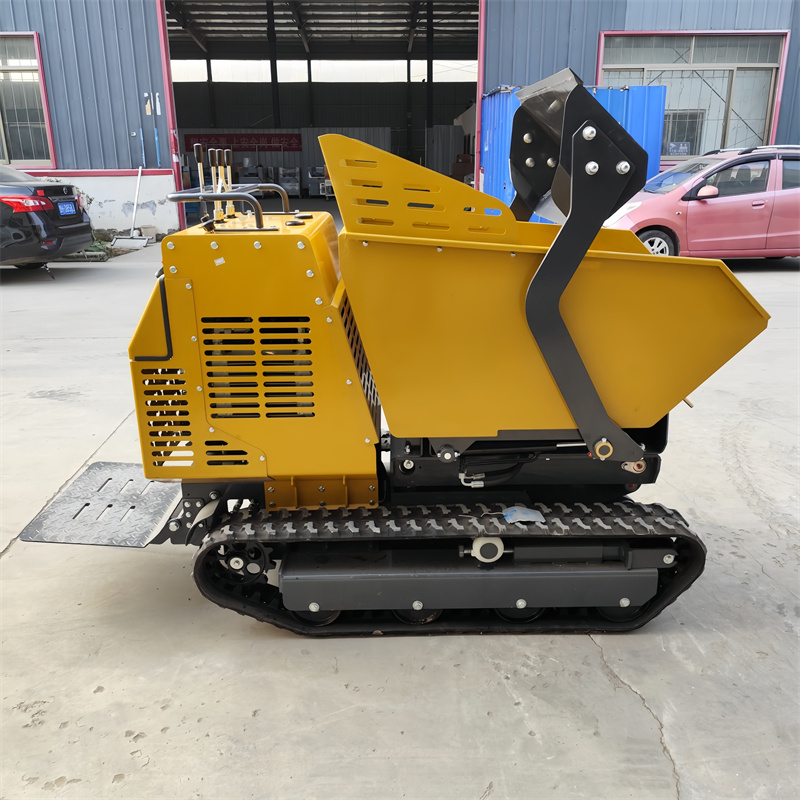

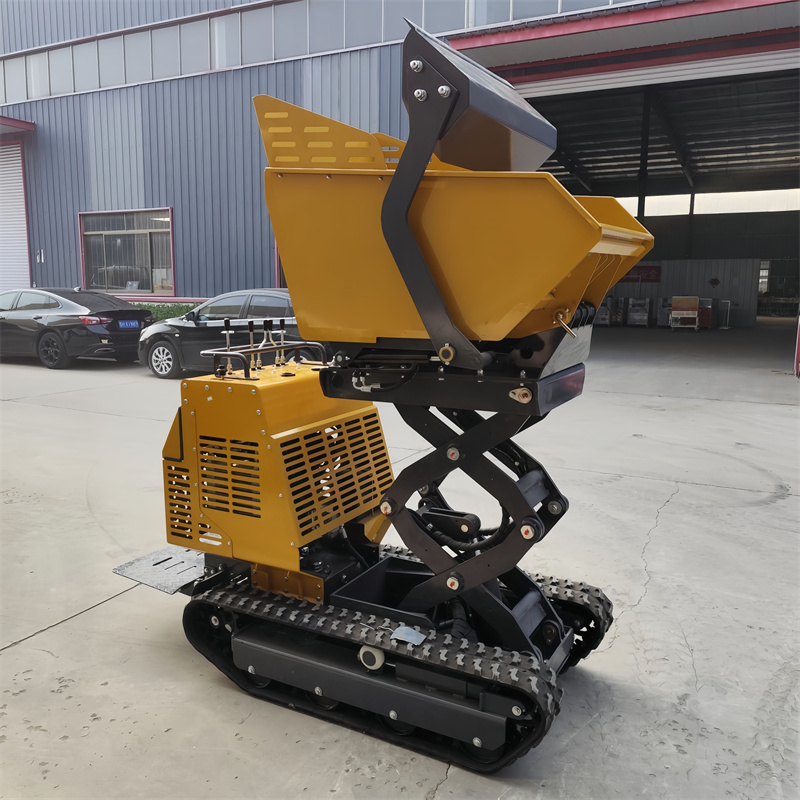

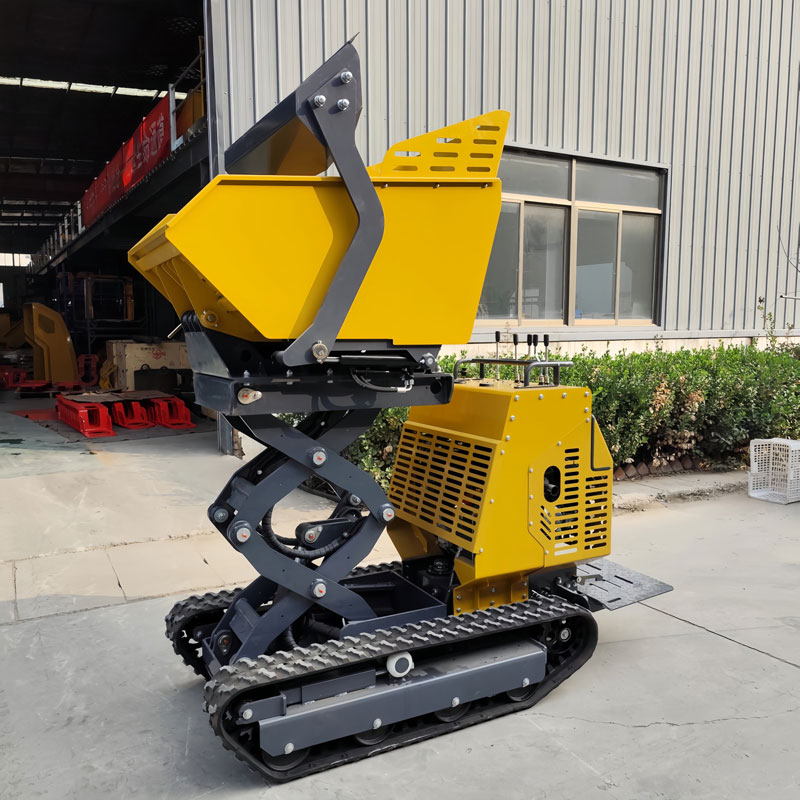

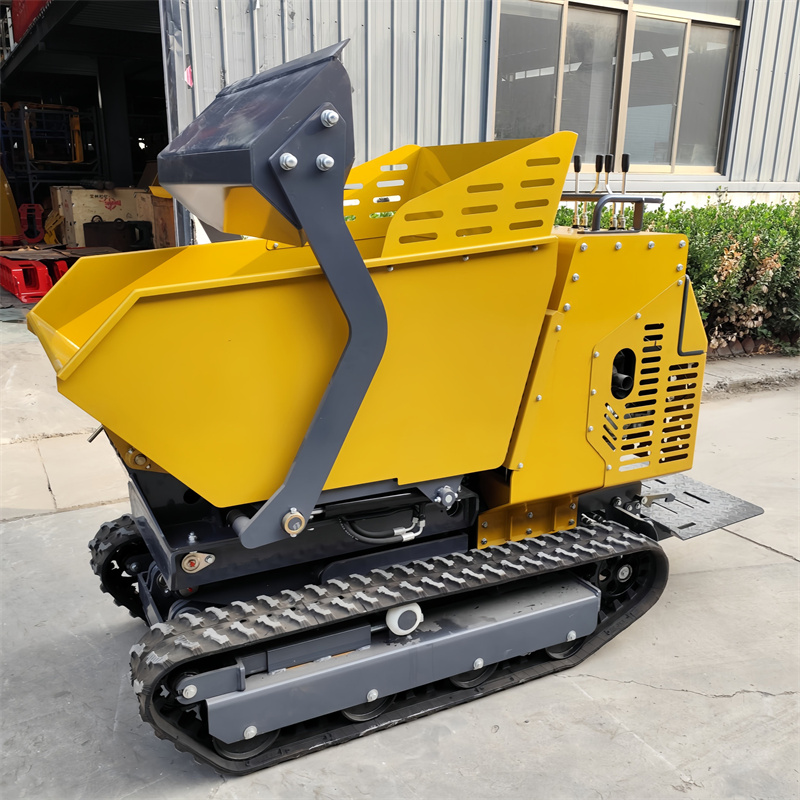

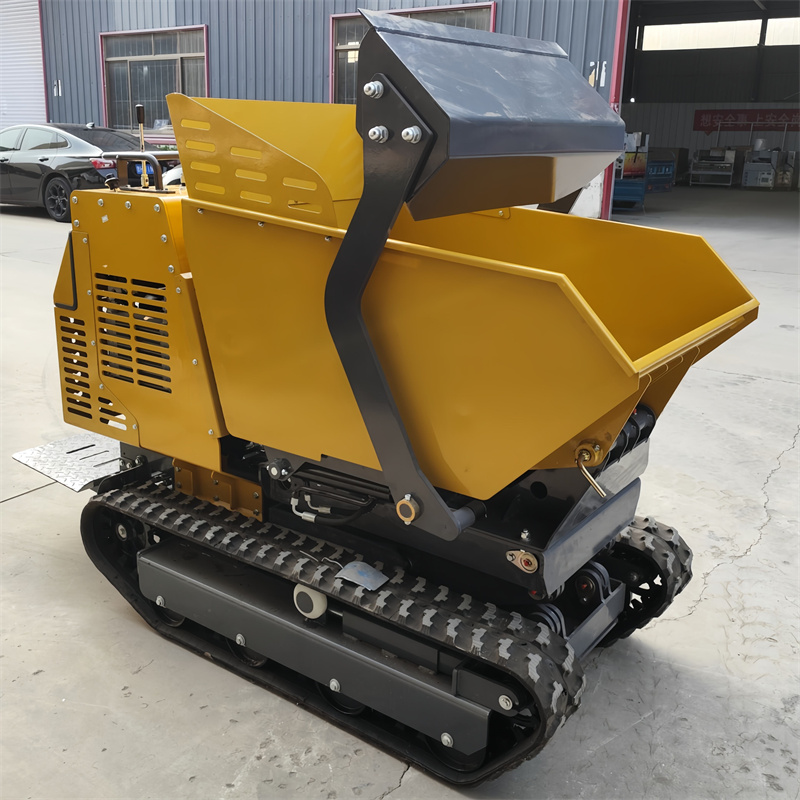

| D1000 Fully Hydraulic Lifting Dump Truck - Basic Specifications | |
|---|---|
| Engine | Briggs & Stratton |
| Fuel Type | 92# Gasoline |
| Emission Standard | EPA / Euro V |
| Power | 10.07 kW (13.5 HP) |
| Fuel Tank Capacity | 6.5 L |
| Max Load Capacity | 1000 kg (Horizontal) / 650 kg (Lifted) |
| Bucket Capacity | 0.45 m³ |
| Bucket Dimensions | 1120 × 740 × 500 mm |

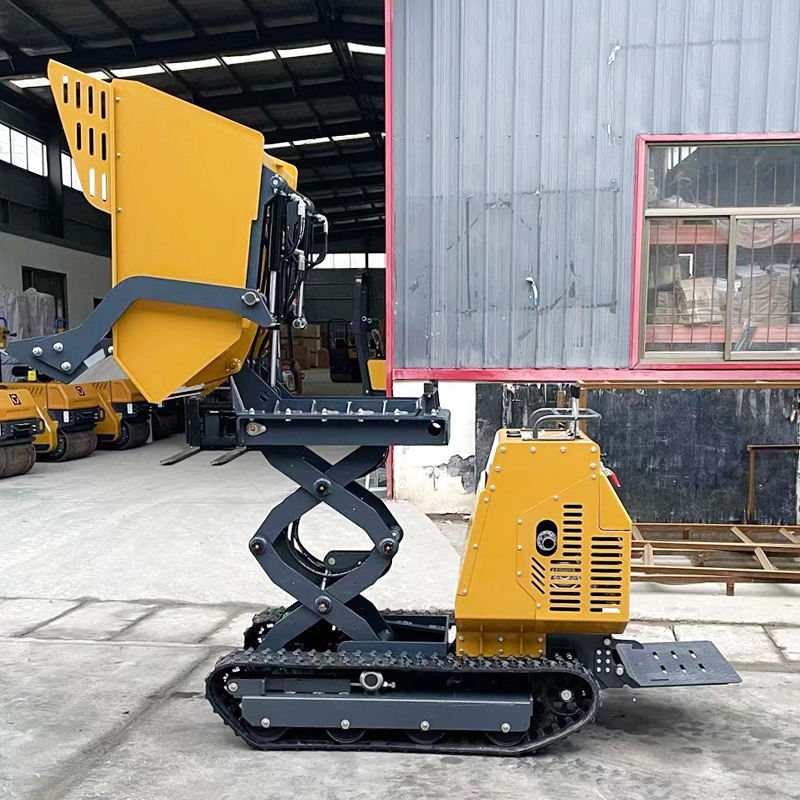

| Hydraulic Lifting System | |
| Lifting Height | 1500 mm |
| Discharge Height | 1300 mm |
| Bucket Tilt Angle | 100° |
| Rotation Angle | 90° |
| Dumping Method | Hydraulic Dumping |
| Chassis & Travel System | |
| Track Model | 180 mm |
| Track Ground Length | 1000 mm |
| Chassis Width | 850 mm |
| Chassis Ground Clearance | 110 mm |
| Performance Parameters | |
| Max Travel Speed | 5 km/h |
| Gradeability | 20° |
| Curb Weight | 880 kg |
| Overall Dimensions (with/without footplate) | 2500/2415 × 890 × 1300 mm |
| Standard Configuration | |
| Briggs & Stratton 13.5HP, EPA certification, Electric Start (with manual start backup), Dual Hydraulic Pumps,Hydraulic Self-dumping Bucket, Hydraulic Self-loading Shovel, Hydraulic Lifting System, 360° Spot Turn | |
Our machines have a 12-month warranty, during which the core components are replaced at the factory price!
30% deposit, 70% before shipment.
The seller will arrange the freight and customs clearance. We will deliver the goods to the customer’s designated address/port. The seller handles shipping and customs procedures. Balance must be fully paid before shipment.
Sure, we conduct functionality tests before shipment and can provide customers with testing videos to ensure their peace of mind during the purchase.
After the 30% deposit is received, our factory will begin preparing the order.Once the machine is completed, we will arrange a video call with you to confirm that the product is exactly as agreed.
As the freight cost for the complete machine is quite high, returns are unfortunately not possible once the machine has been shipped.
However, if any parts are damaged during use or transportation, you can simply take clear photos and send them to us. We will then supply the required replacement parts to you at the lowest factory price and ship them directly from our factory.
In addition, as we are the direct manufacturer, we can provide long-term spare parts and attachments support for the model you purchase, for many years to come.
All spare parts and attachments will be supplied at the lowest factory-direct prices.
