| 项目 Item | 数值 Value |
|---|---|
| 发动机 Engine | |
| 发动机型号 Engine model | 润通740 |
| 最大功率 Max power | 16.8KW / 24HP |
| 启动方式 Start method | 电启动 Electric start |

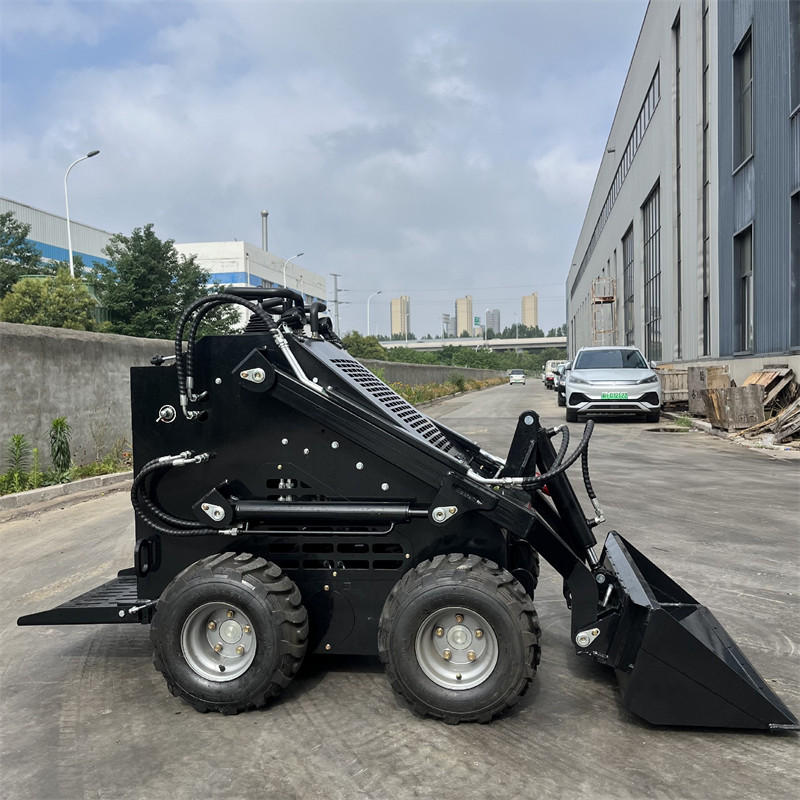

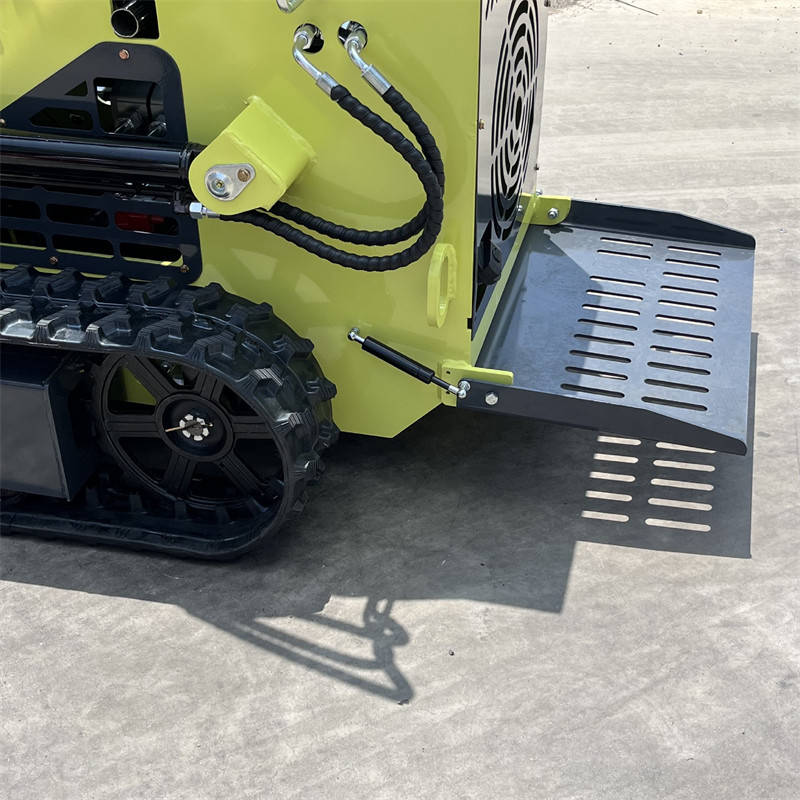

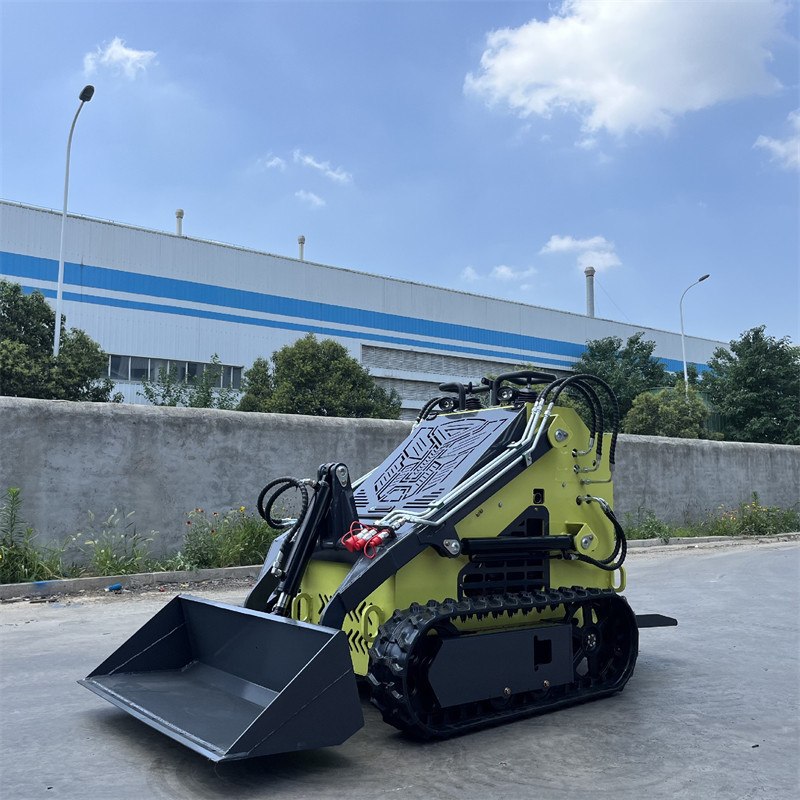

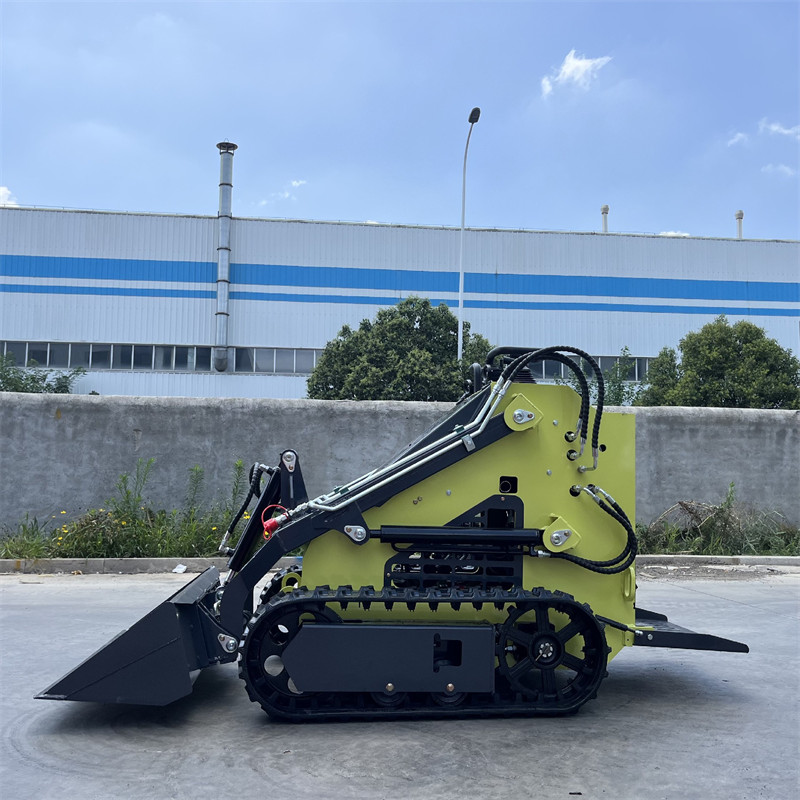

| 行走方式 Walking type | 履带 / 轮式 Tracked / Wheeled |

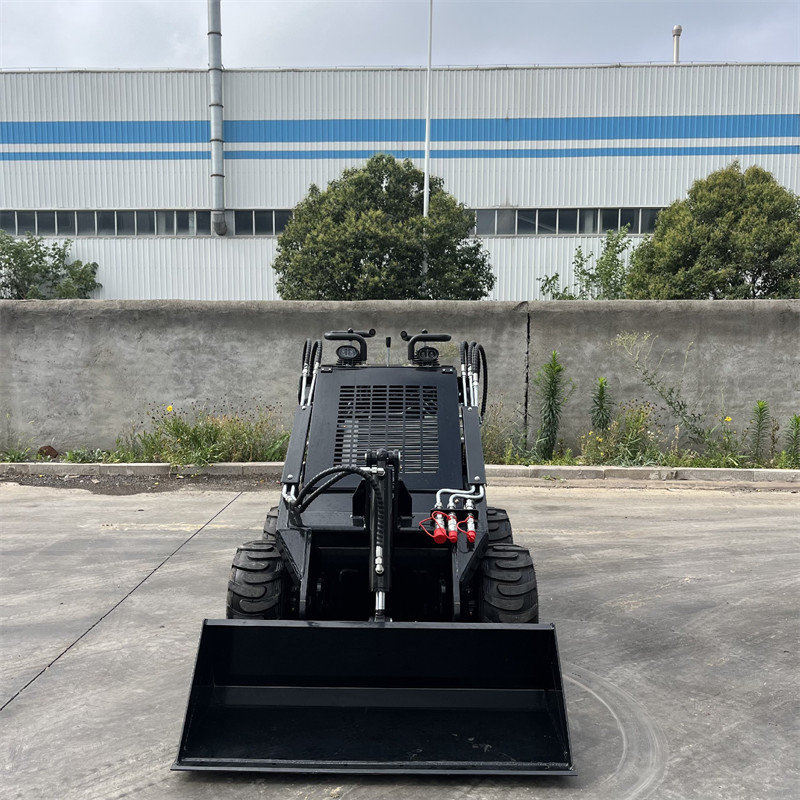

| 铲斗 Bucket | |
| 铲斗容量 Bucket volume(m³) | 0.15 |
| 尺寸 Dimensions | |
| 机器尺寸 Machine size(mm) | 1750 × 1100 × 1250 |
| 铲斗宽度 Bucket width(mm) | 900 |
| 轴距 Wheelbase(mm) | 850 |
| 离地间隙 Ground clearance(mm) | 280 |
| 尾部摆长 Tail swing(mm) | 280 |
| 性能参数 Performance | |
| 操作重量 Operating weight(kg) | 890 |
| 额定载荷 Rated load(kg) | 200 |
| 最大提升力 Max lifting force(kg) | 375 |
| 最大起重力 Max lifting force(KN) | 3.0 |
| 最大牵引力 Max traction(KN) | 3.5 |
| 行走速度 Travel speed(km/h) | 6 |
| 爬坡能力 Climbing capacity | 30° |

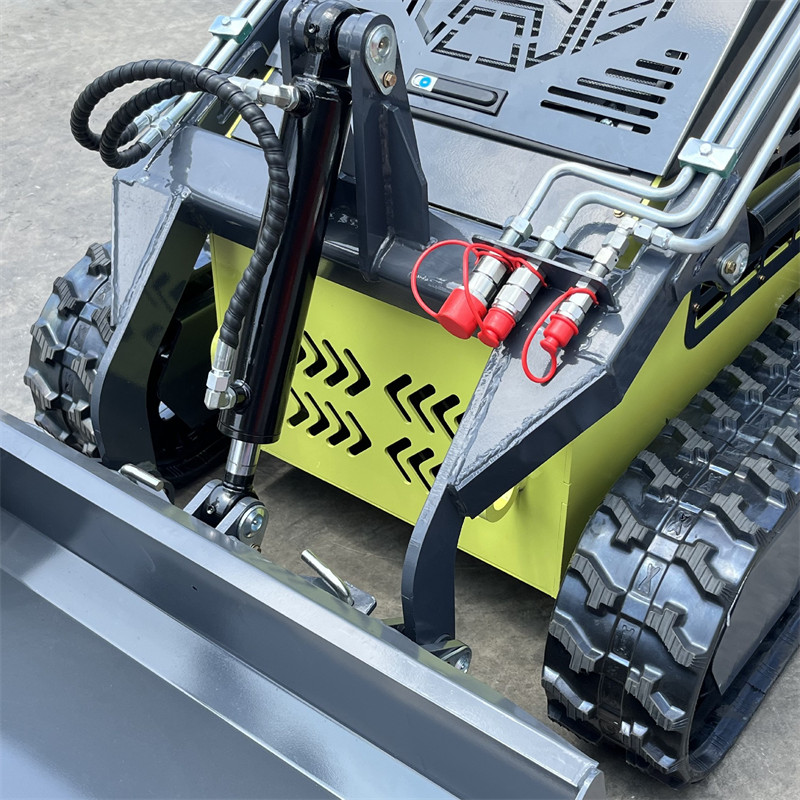

| 液压系统 Hydraulic System | |
| 额定压力 Rated pressure(MPa) | 17 |
| 系统压力范围 System pressure range(bar) | 17-21 |
| 工作循环 Working cycle | 5s |
| 工作范围 Working Range | |
| 最大操作高度 Max operating height(mm) | 2450 |
| 至铲斗销高度 To bucket pin height(mm) | 1870 |
| 整车高度 Total height(mm) | 1350 |
| 斗平放最大高度 Bucket flat max height(mm) | 1450 |
| 卸载高度 Dumping height(mm) | 1510 |
| 卸载距离 Dumping distance(mm) | 450 |
| 卸载角度 Dumping angle | 27° |
| 铲斗最大翻转角度 Bucket max tilt angle | 114° |
Our machines have a 12-month warranty, during which the core components are replaced at the factory price!
30% deposit, 70% before shipment.
The seller will arrange the freight and customs clearance. We will deliver the goods to the customer’s designated address/port. The seller handles shipping and customs procedures. Balance must be fully paid before shipment.
Sure, we conduct functionality tests before shipment and can provide customers with testing videos to ensure their peace of mind during the purchase.
After the 30% deposit is received, our factory will begin preparing the order.Once the machine is completed, we will arrange a video call with you to confirm that the product is exactly as agreed.
As the freight cost for the complete machine is quite high, returns are unfortunately not possible once the machine has been shipped.
However, if any parts are damaged during use or transportation, you can simply take clear photos and send them to us. We will then supply the required replacement parts to you at the lowest factory price and ship them directly from our factory.
In addition, as we are the direct manufacturer, we can provide long-term spare parts and attachments support for the model you purchase, for many years to come.
All spare parts and attachments will be supplied at the lowest factory-direct prices.
