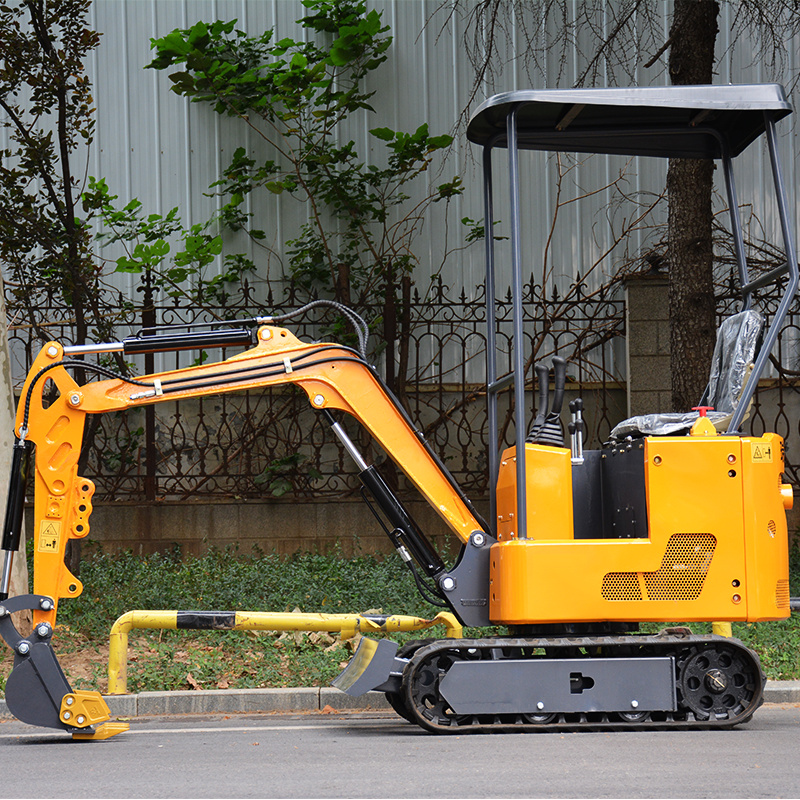

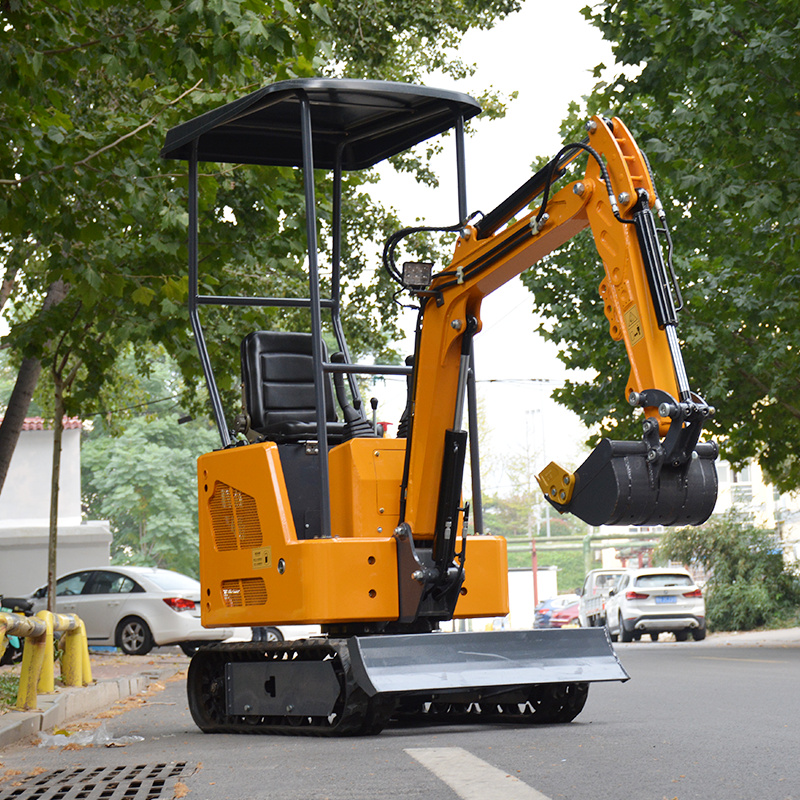

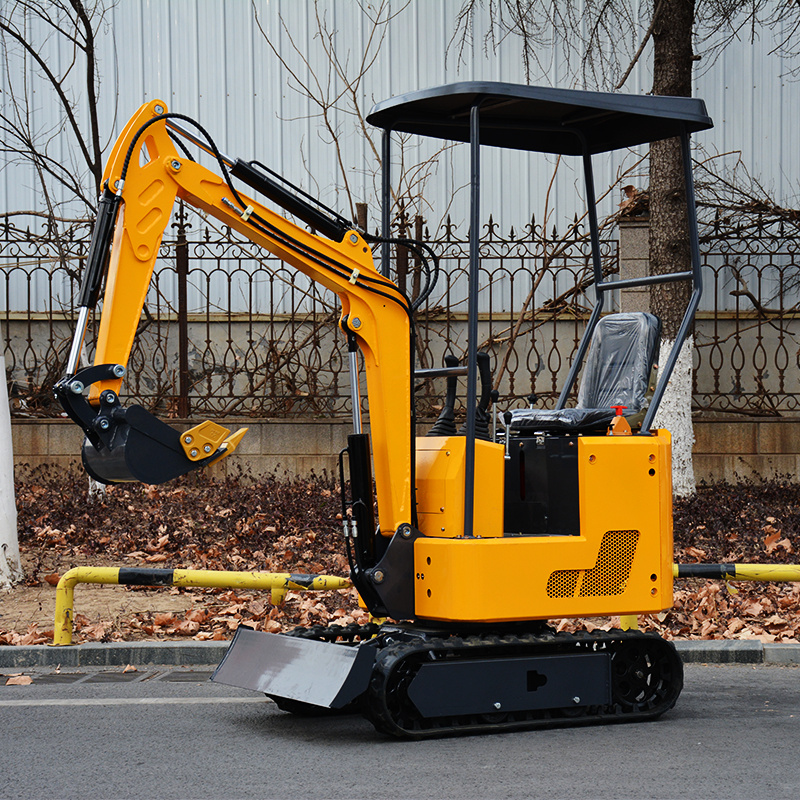

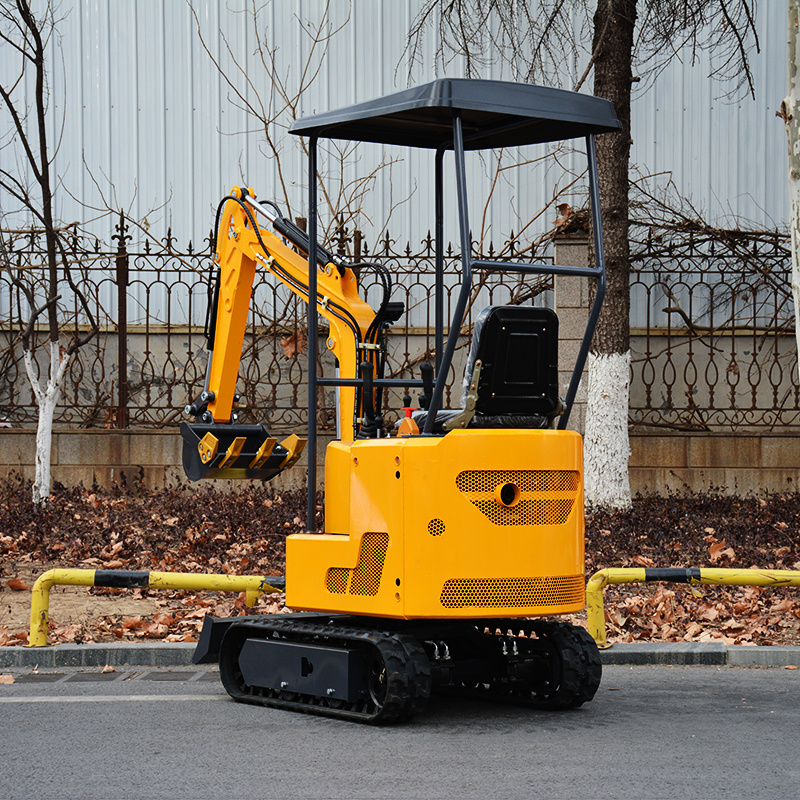

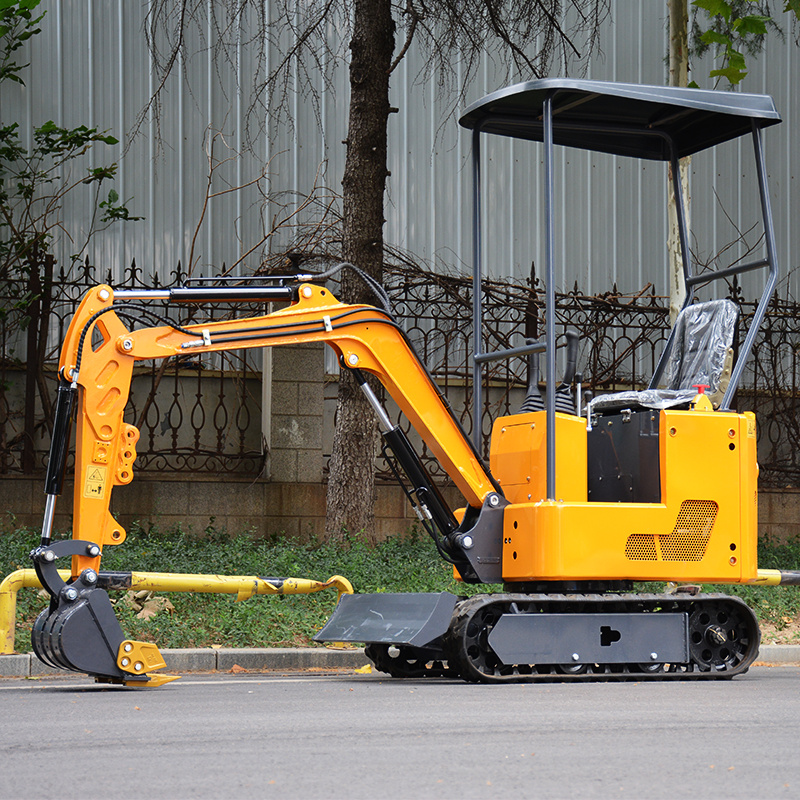

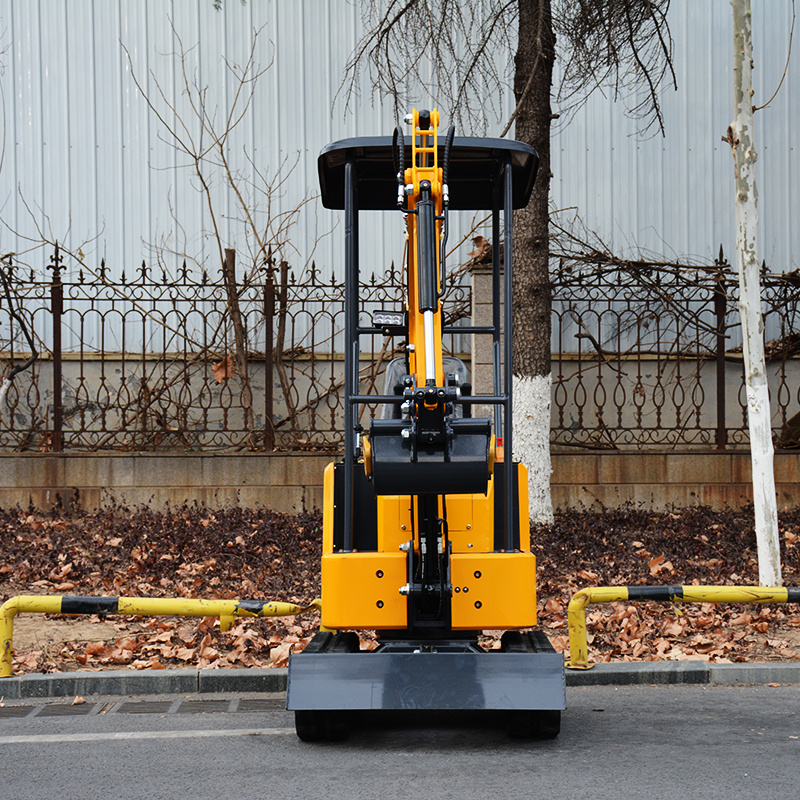

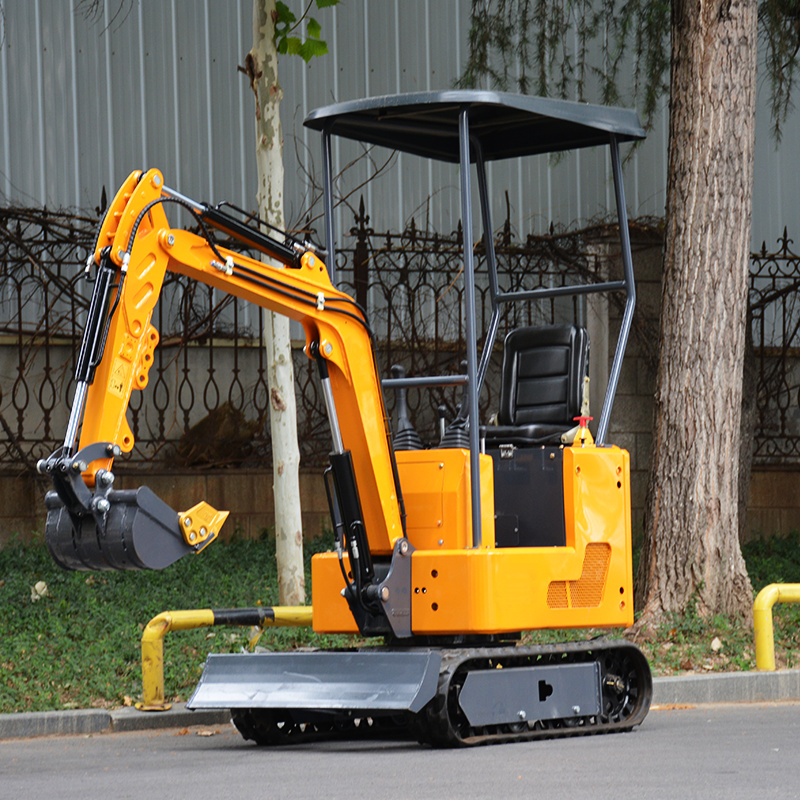

| 整机基本参数 Basic parameters of the whole machine | 操作重量 Operation weight | 1200 KGS |
| 长 Length | 2500(mm) | |
| 高 Total height | 2200(mm) | |
| 宽度 Width | 940(mm) | |
| 工作范围 Working Range | 最大挖掘高度 Max. Digging Height | 2850(MM) |
| 最大卸载高度 Max. Dumping Height | 1950(MM) | |
| 最大挖掘深度 Max. Digging Depth | 1620(MM) | |
| 最大挖掘范围 Max. Digging radius | 2900(MM) | |
| 最小回转半径 Minimum radius of gyration | 800(MM) | |
| 推土铲最大提升高度 Maximum lifting height of earth shovel | 160(MM) | |
| 推土铲最大挖掘深度 The maximum digging depth of dozer | 210(MM) | |
| 动力系统 Dynamical system | 发动机型号 Model | YouPu/KOOP/ Briggs & Stratton |
| 额定功率 Power | 12Hp/12Hp/13.5Hp | |
| 液压系统 Hydraulic System | 额定工作压力 Operating Pressure | 22mpa |
| 最大流量 L/MIN | 25L/min | |
| 形式 Shape | 负载敏感系统 Load Sensing System | |
| 性能参数 Performance parameter | 铲斗容量 (SAE) Bucket Capacity | 0.024m³ |
| 爬坡能力 Climbing ability | 45° | |
| 行走速度 Travel speed | 2.2-4.3KM/h | |
| 回转速度 Unit swing speed | 8-10r/min | |
| 燃油箱容量 Hydraulic tank capacity | 10L |
Our machines have a 12-month warranty, during which the core components are replaced at the factory price!
30% deposit, 70% before shipment.
The seller will arrange the freight and customs clearance. We will deliver the goods to the customer’s designated address/port. The seller handles shipping and customs procedures. Balance must be fully paid before shipment.
Sure, we conduct functionality tests before shipment and can provide customers with testing videos to ensure their peace of mind during the purchase.
After the 30% deposit is received, our factory will begin preparing the order.Once the machine is completed, we will arrange a video call with you to confirm that the product is exactly as agreed.
As the freight cost for the complete machine is quite high, returns are unfortunately not possible once the machine has been shipped.
However, if any parts are damaged during use or transportation, you can simply take clear photos and send them to us. We will then supply the required replacement parts to you at the lowest factory price and ship them directly from our factory.
In addition, as we are the direct manufacturer, we can provide long-term spare parts and attachments support for the model you purchase, for many years to come.
All spare parts and attachments will be supplied at the lowest factory-direct prices.
