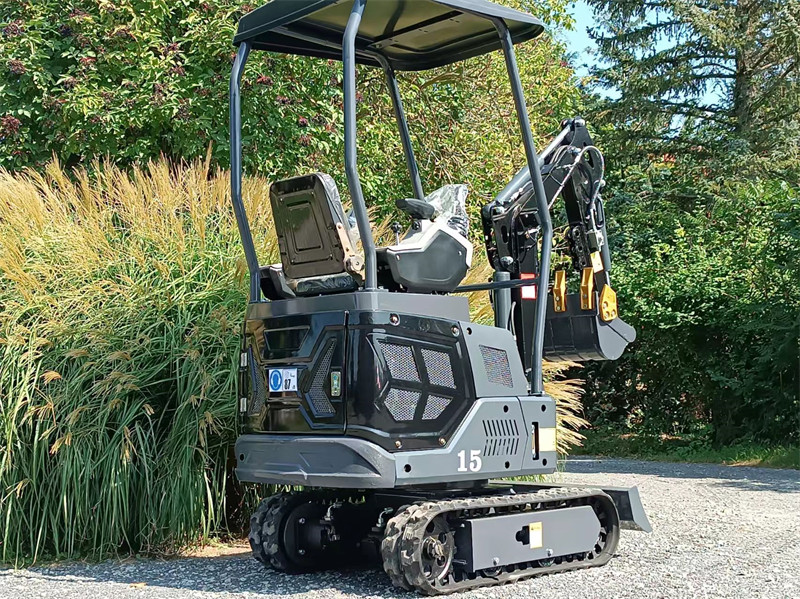

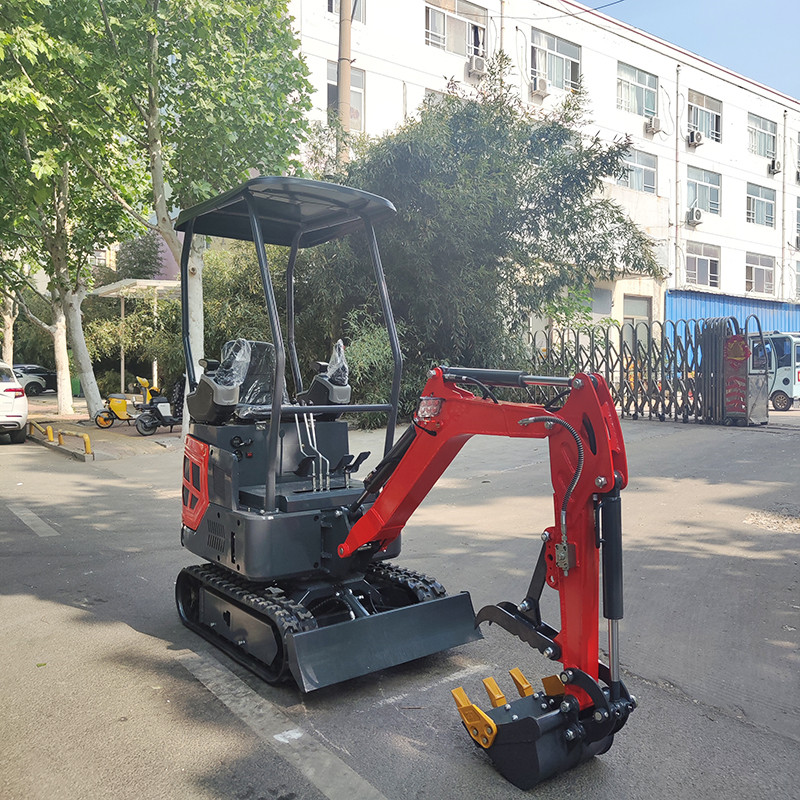

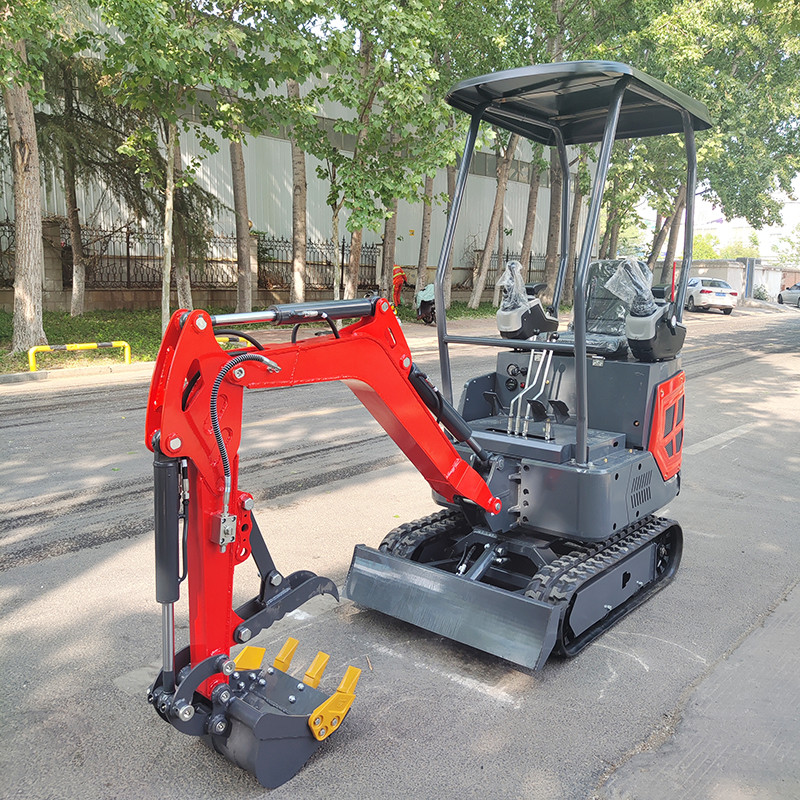

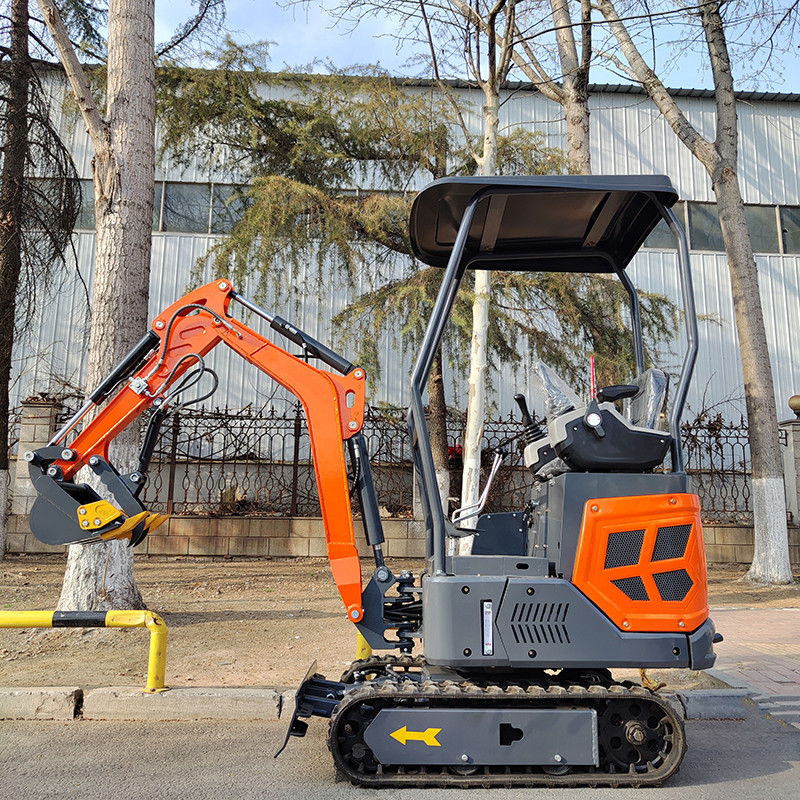

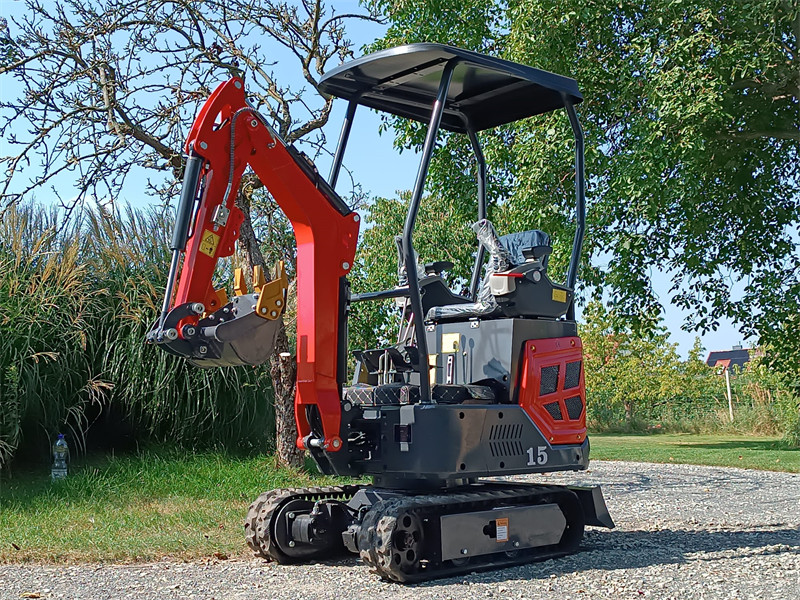

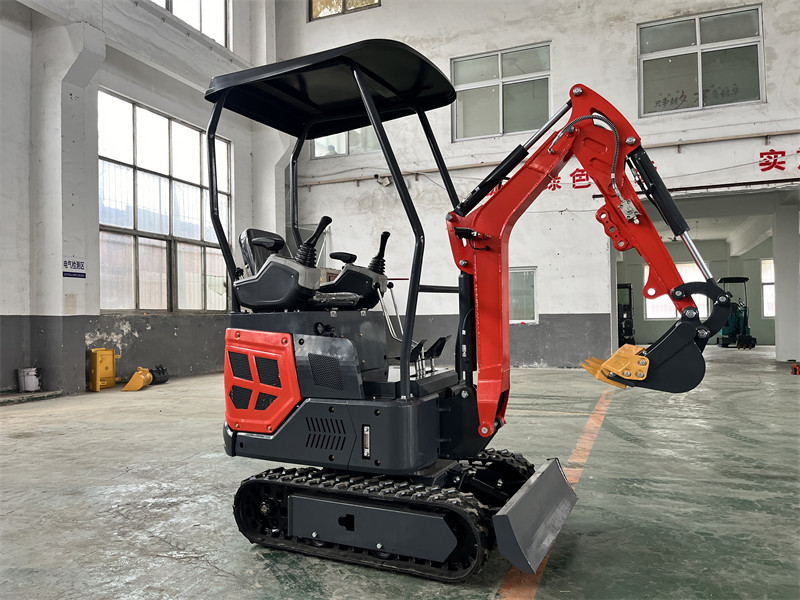

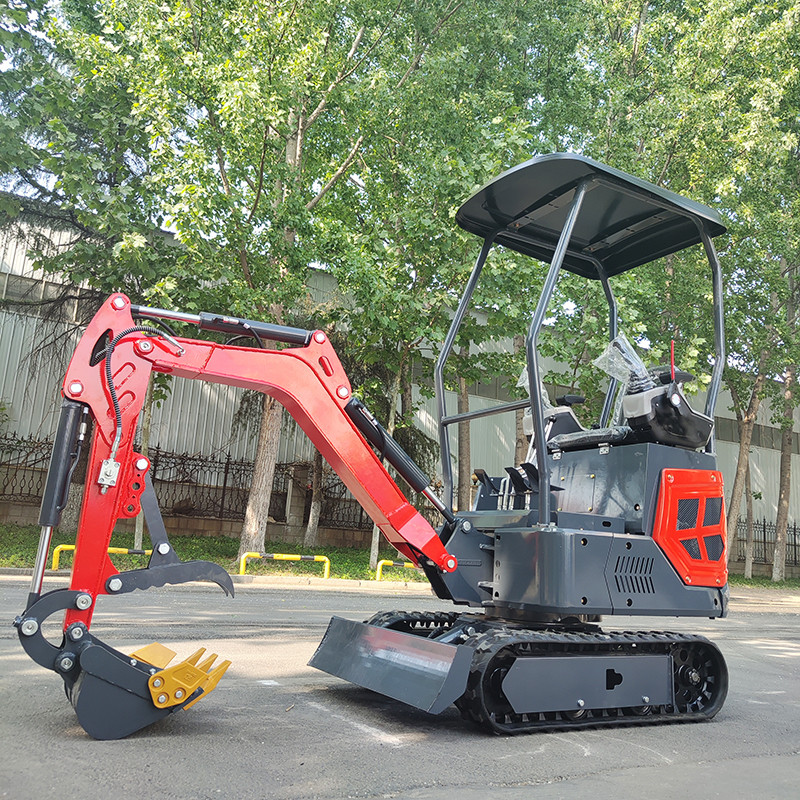

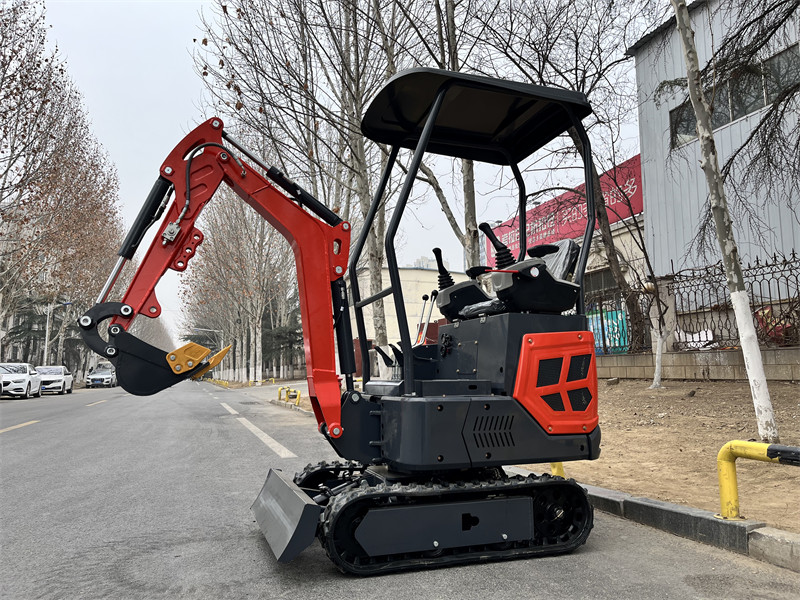

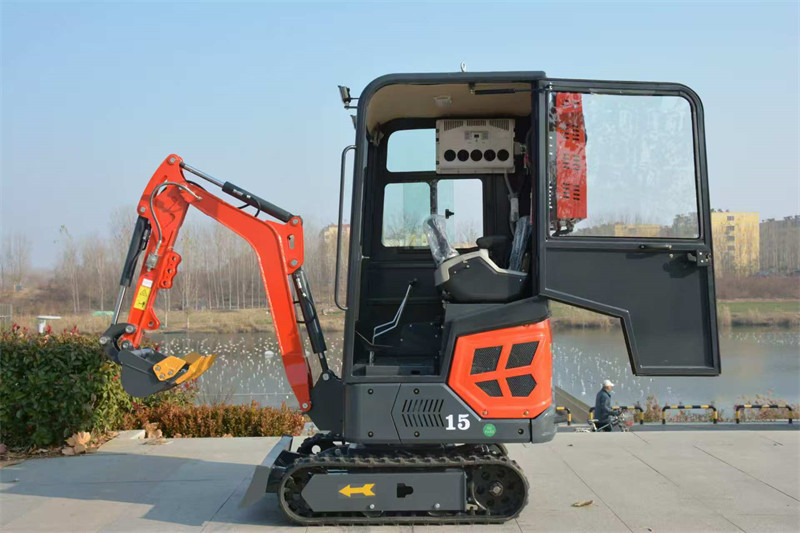

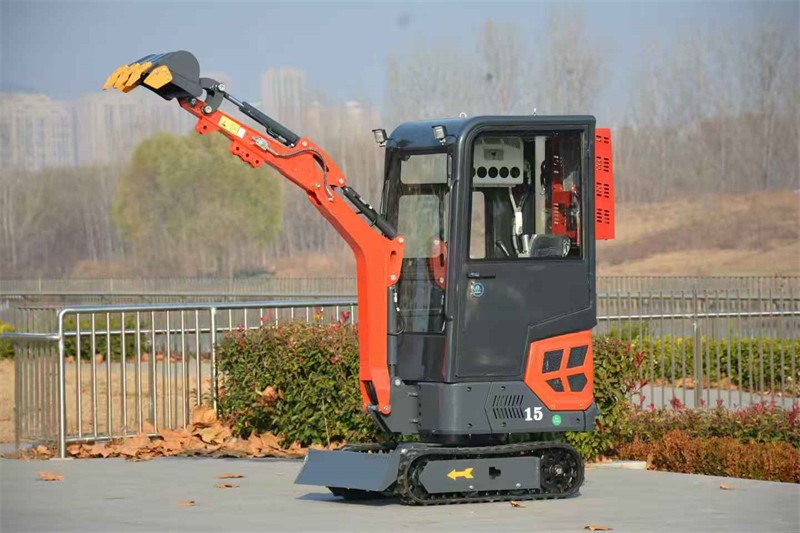

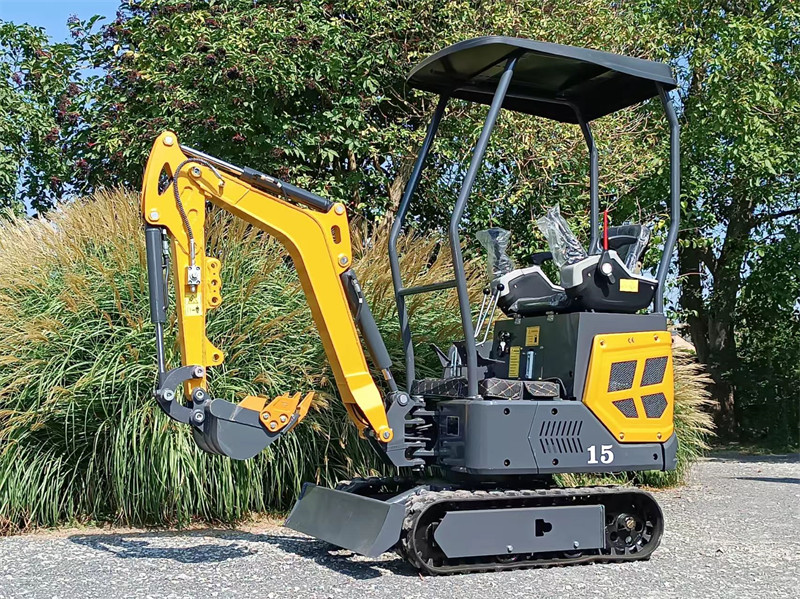

SH15 Small excavator

🔍 Details of Model:SH15

项目
Item
数值
Value

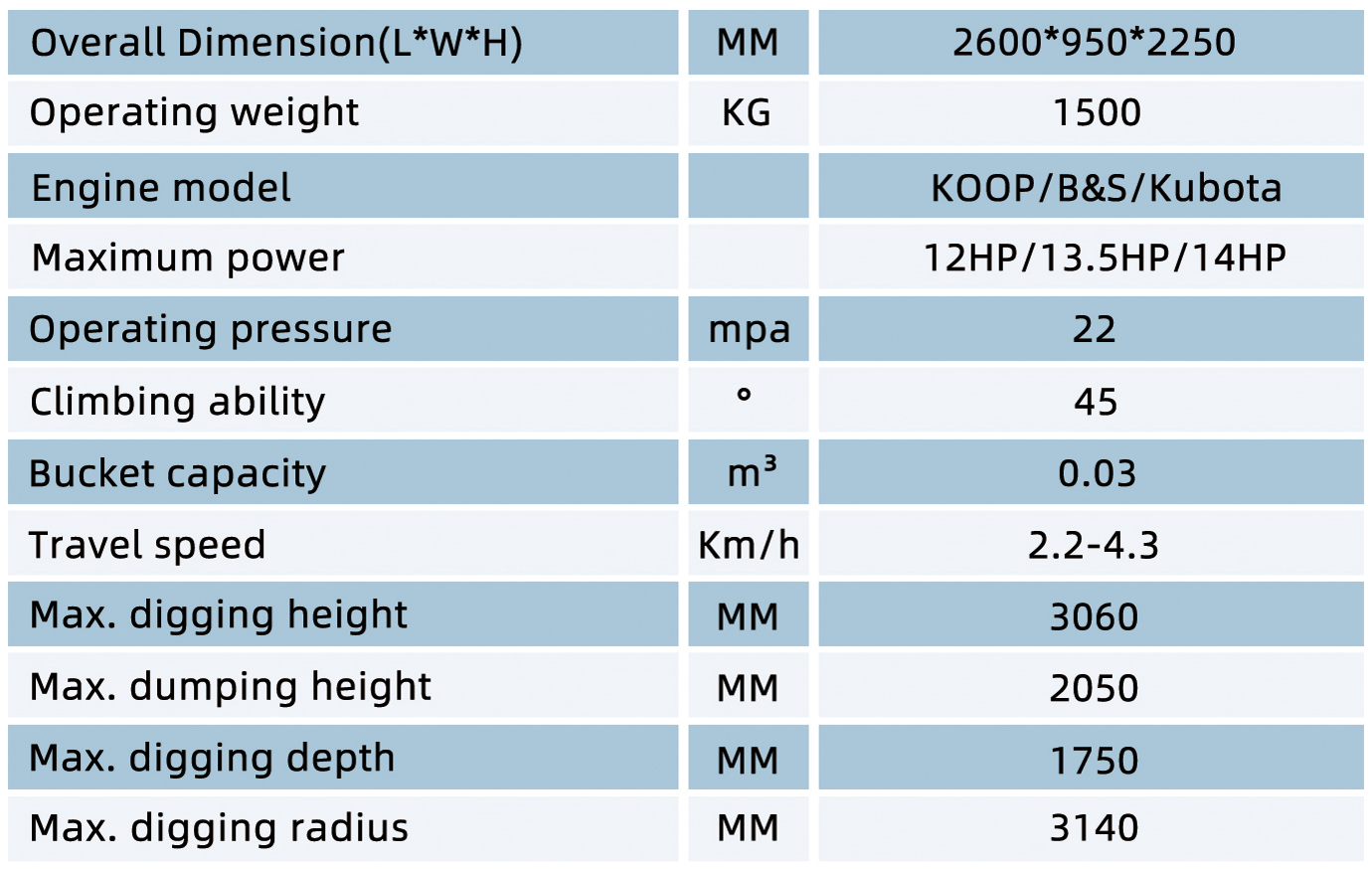

整机基本参数
Basic parameters of the whole machine
操作重量
Total weight
1500KG

Length
2600mm

Total height
2250mm
宽度
Width
950mm
工作范围
Working Range
最大挖掘高度
Max. Digging Height
3060mm
最大卸载高度
Max. Dumping Height
2050mm
最大挖掘深度
Max. Digging Depth
1750mm
最大挖掘范围
Max. Digging radius
3140mm
最小回转半径
Minimum radius of gyration
850mm
推土铲最大提升高度
Maximum lifting height of earth shovel
210mm
推土铲最大挖地深度
The maximum digging depth of dozer
250mm
尾部回转半径
Min Tail swing radius
850mm
动力系统
Dynamical System
发动机型号
Model
KOOP / B&S / Kubota
额定功率
Power
12Hp / 13.5Hp / 11.2Hp
液压系统
Hydraulic System
额定工作压力
Operating Pressure
22Mpa
最大流量
Max. Flow
27L/min
形式
Shape
液压先导操作
性能参数
Performance Parameter
铲斗容量 (SAE)
Bucket Capacity
0.03m³
爬坡能力
Climbing ability
45°
行走速度
Travel speed
2.2-4.3 km/h
回转速度
Unit swing speed
8-10 r/min
燃油箱容量
Hydraulic tank capacity
10L

Online Message

Chat on WhatsApp

Videos of SH15

Before You Shop

After-Sales Support

Our machines have a 12-month warranty, during which the core components are replaced at the factory price!

Payment method

30% deposit, 70% before shipment.

Freight transportation

The seller will arrange the freight and customs clearance. We will deliver the goods to the customer’s designated address/port. The seller handles shipping and customs procedures. Balance must be fully paid before shipment.

Will all the goods be tested before shipment?

Sure, we conduct functionality tests before shipment and can provide customers with testing videos to ensure their peace of mind during the purchase.

What guarantee does the seller provide?

After the 30% deposit is received, our factory will begin preparing the order.Once the machine is completed, we will arrange a video call with you to confirm that the product is exactly as agreed.
As the freight cost for the complete machine is quite high, returns are unfortunately not possible once the machine has been shipped.
However, if any parts are damaged during use or transportation, you can simply take clear photos and send them to us. We will then supply the required replacement parts to you at the lowest factory price and ship them directly from our factory.
In addition, as we are the direct manufacturer, we can provide long-term spare parts and attachments support for the model you purchase, for many years to come.
All spare parts and attachments will be supplied at the lowest factory-direct prices.
