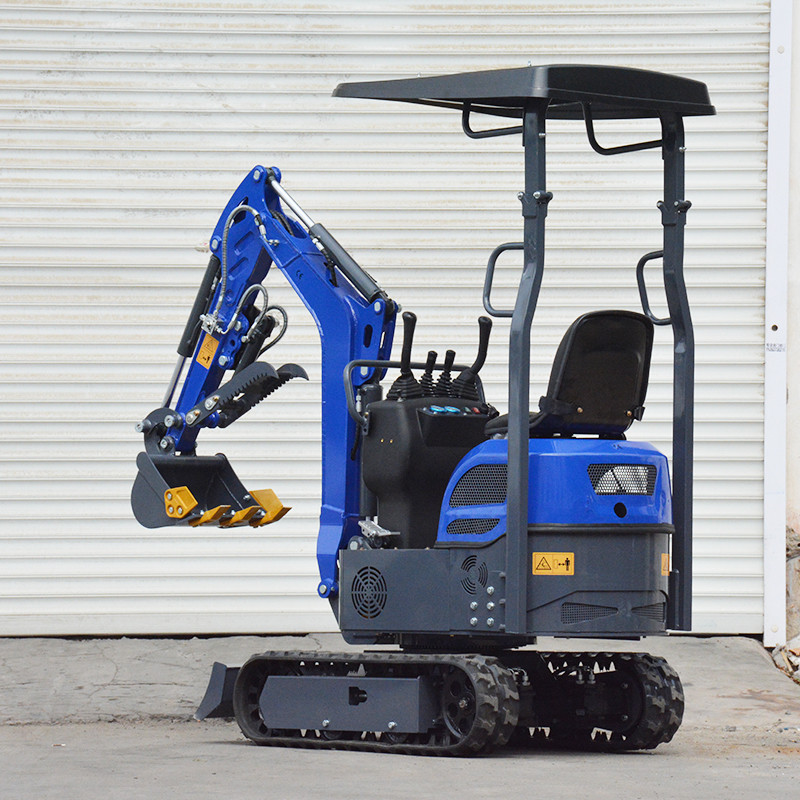

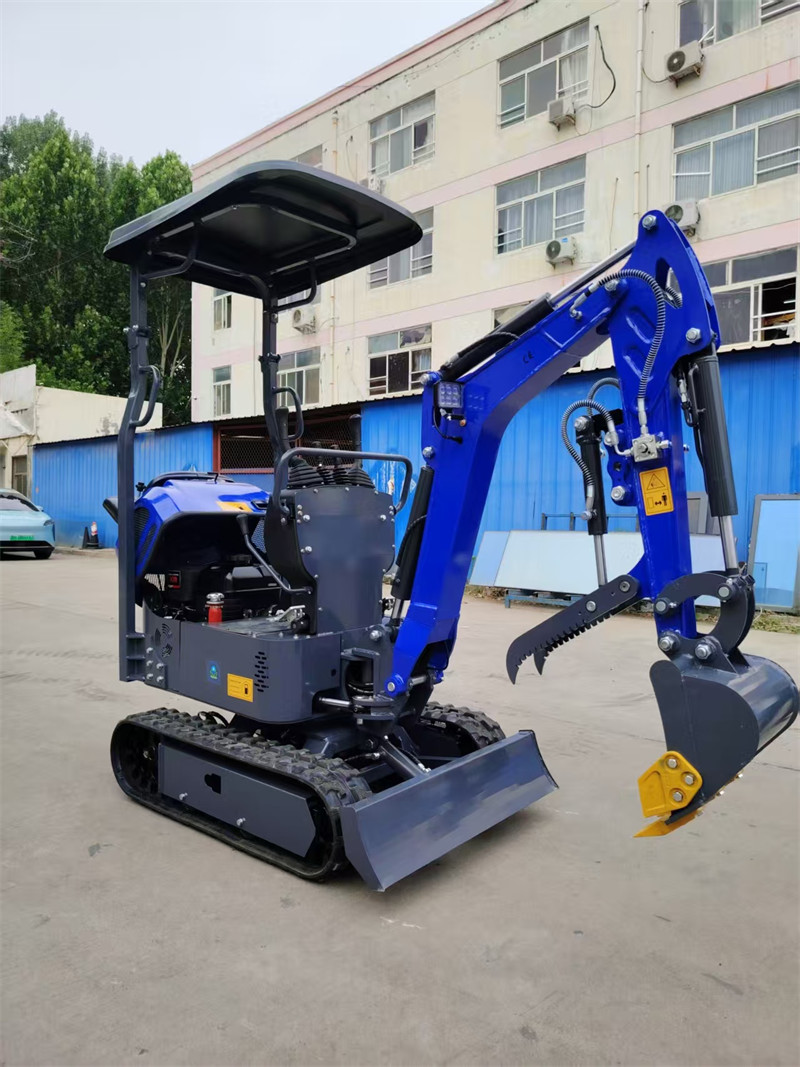

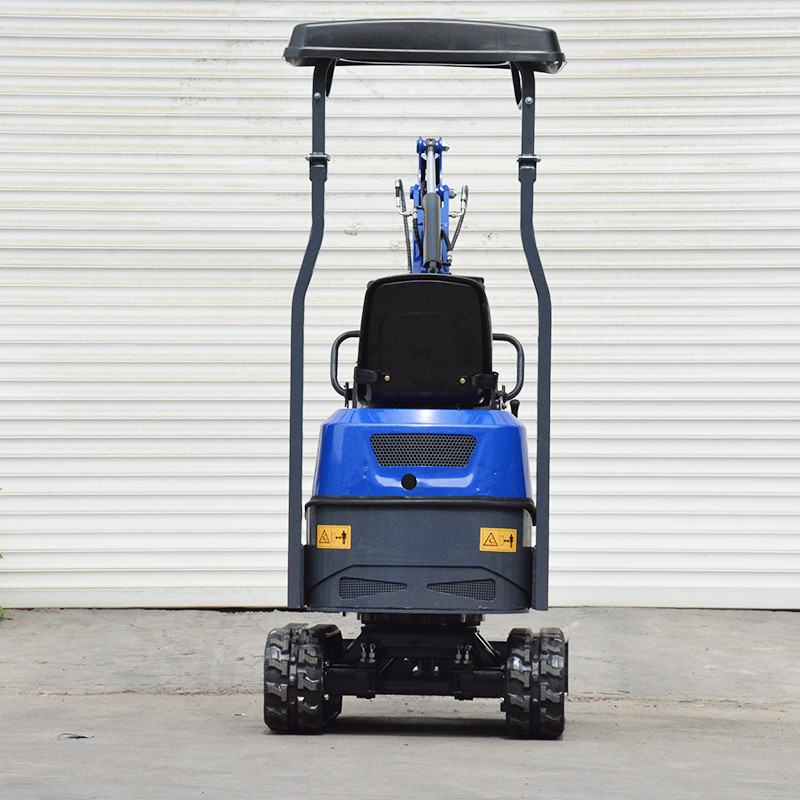

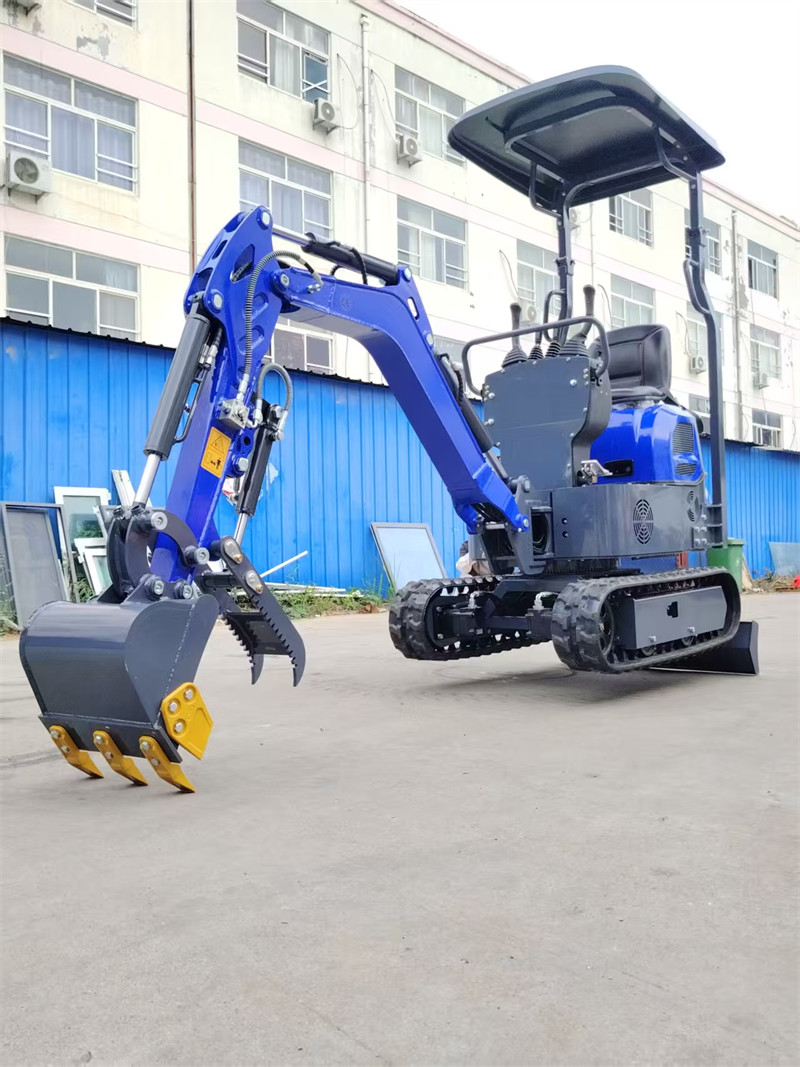

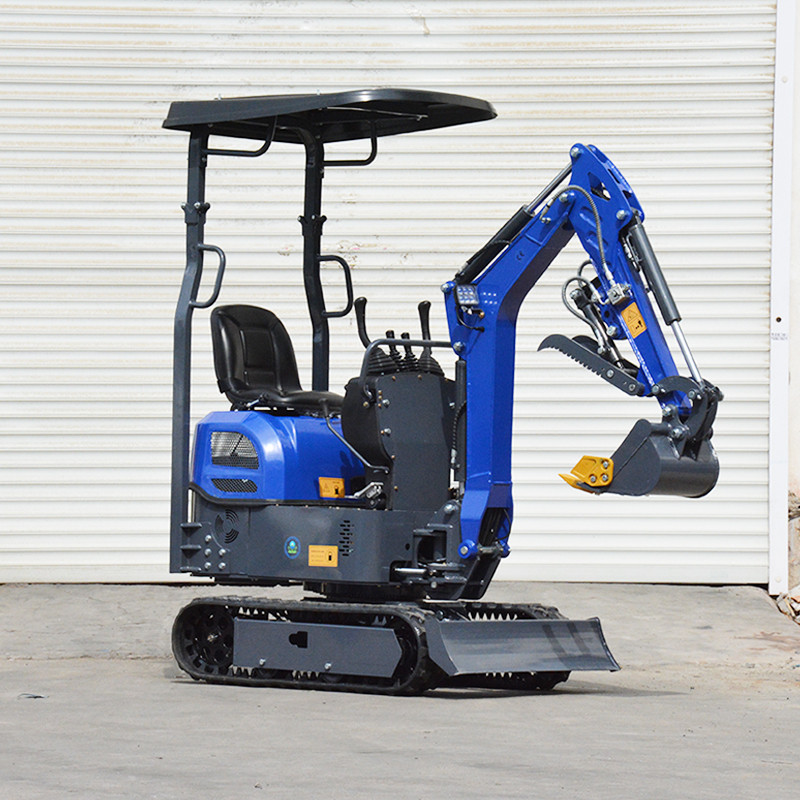

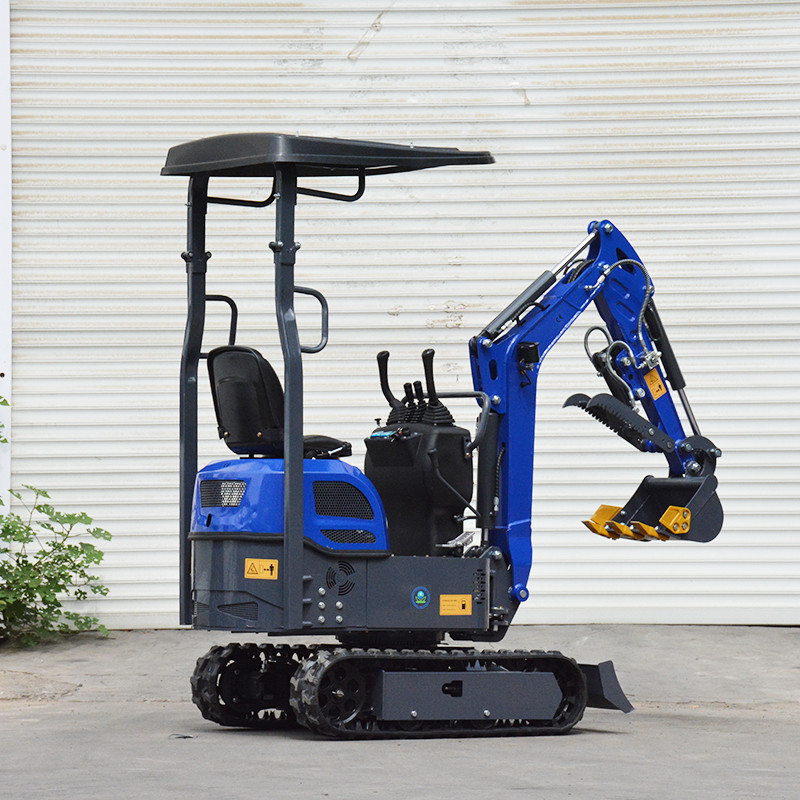

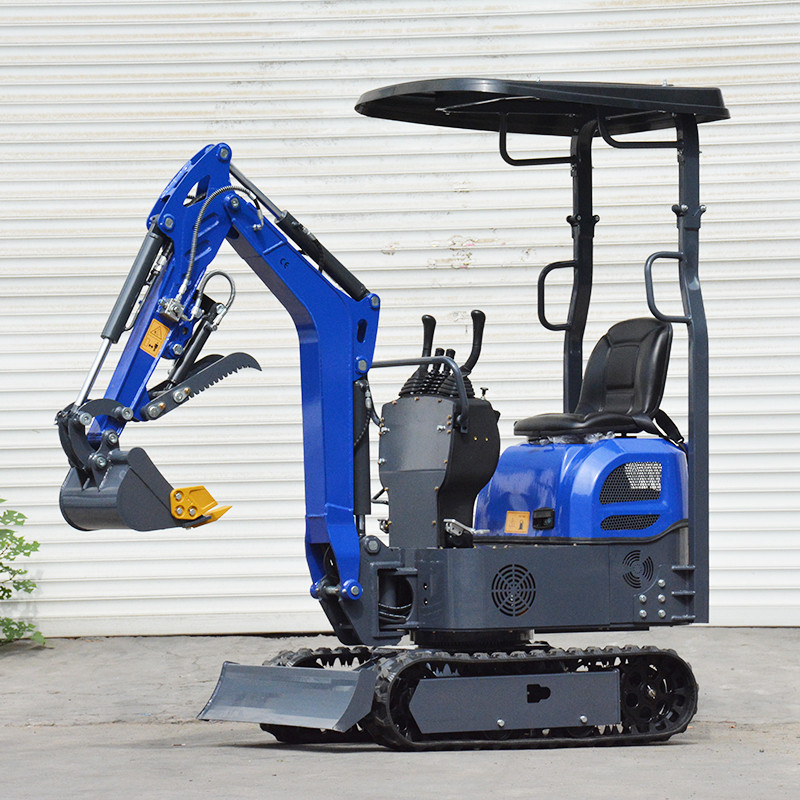

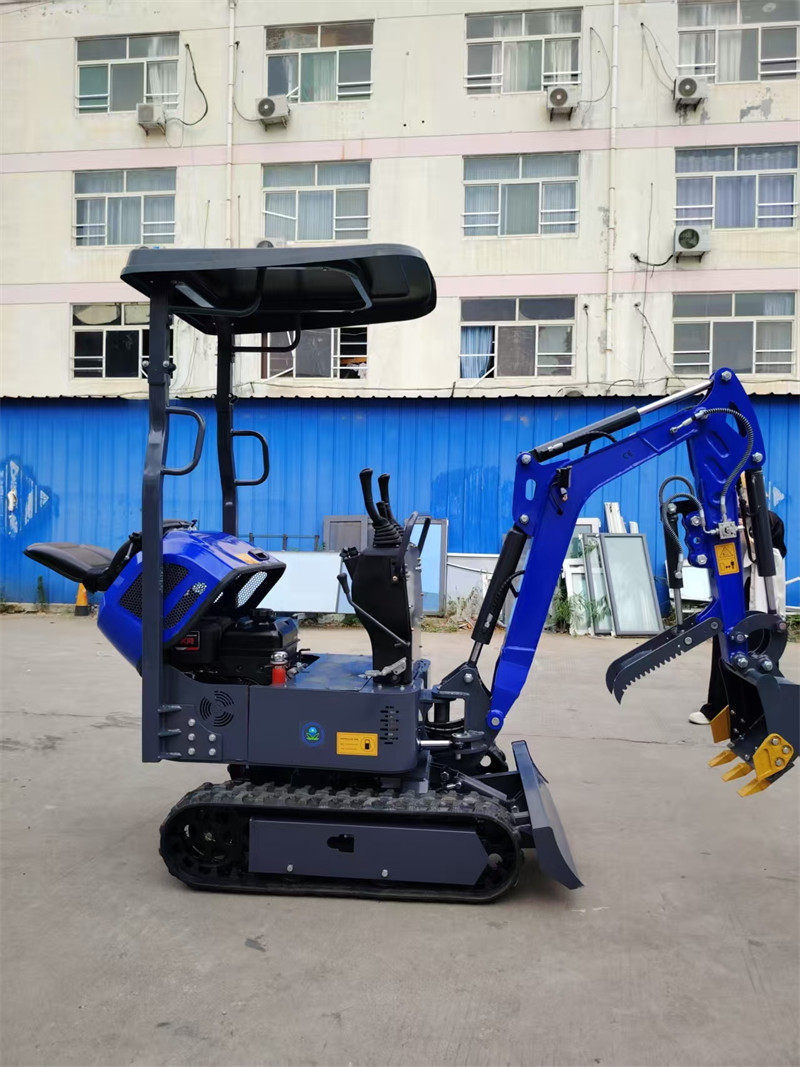

SH12U Small excavator

🔍 Details of Model:SH12U

项目
Item
数值
Value
整机基本参数
Basic parameters of the whole machine
操作重量 Operation weight1200 KGS
长 length2500(mm)
高 Total height2200(mm)
宽度 width950(mm)
工作范围
Working Range
最大挖掘高度 Max. Digging Height2850(MM)
最大卸载高度 Max. Dumping Height1950(MM)
最大挖掘深度 Max. Digging Depth1650(MM)
最大挖掘范围 Max. Digging radius2900(MM)
最小回转半径
Minimum radius of gyration
700(MM)
推土铲最大提升高度
Maximum lifting height of earth shovel
160(MM)
推土铲最大挖地深度
The maximum digging depth of dozer
210(MM)
动力系统
Dynamical System
发动机型号 ModelYouPu/KOOP/Briggs & Stratton
额定功率 Power12Hp/12Hp/13.5Hp
液压系统
Hydraulic System
额定工作压力 Operating Pressure22Mpa
最大流量 Max. Flow25L/min
形式 Shape液压先导操作
性能参数
Performance Parameter
铲斗容量 (SAE) Bucket Capacity0.024m³
爬坡能力 Climbing ability45°
行走速度 Travel speed2.2-4.3 KM/h
回转速度 Unit swing speed8-10 r/min
燃油箱容量 Hydraulic tank capacity10L

Online Message

Chat on WhatsApp

Videos of SH12U

Before You Shop

After-Sales Support

Our machines have a 12-month warranty, during which the core components are replaced at the factory price!

Payment method

30% deposit, 70% before shipment.

Freight transportation

The seller will arrange the freight and customs clearance. We will deliver the goods to the customer’s designated address/port. The seller handles shipping and customs procedures. Balance must be fully paid before shipment.

Will all the goods be tested before shipment?

Sure, we conduct functionality tests before shipment and can provide customers with testing videos to ensure their peace of mind during the purchase.

What guarantee does the seller provide?

After the 30% deposit is received, our factory will begin preparing the order.Once the machine is completed, we will arrange a video call with you to confirm that the product is exactly as agreed.
As the freight cost for the complete machine is quite high, returns are unfortunately not possible once the machine has been shipped.
However, if any parts are damaged during use or transportation, you can simply take clear photos and send them to us. We will then supply the required replacement parts to you at the lowest factory price and ship them directly from our factory.
In addition, as we are the direct manufacturer, we can provide long-term spare parts and attachments support for the model you purchase, for many years to come.
All spare parts and attachments will be supplied at the lowest factory-direct prices.
